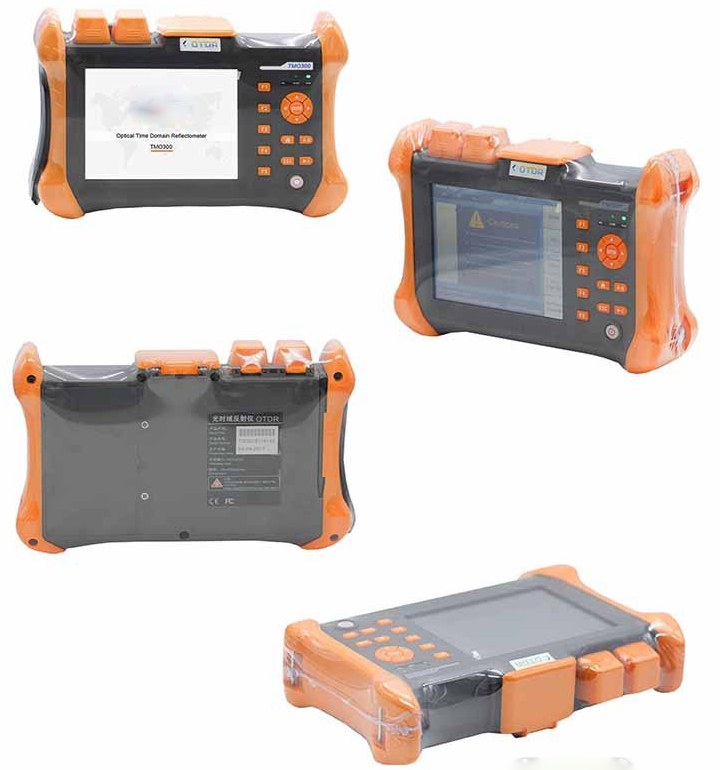

5.6-Inch outdoor-enhanced touchscreen OTDR
Specifications:
◇ 5.6-Inch outdoor-enhanced touchscreen, 7.4V/4.4Ah Lithium battery
◇ Event Dead zone as lower as 1.5meter
◇ Combined multi-dynamic range and wavelengths
◇ Muti measurement mode, support Touching LCD and pressing keys
◇ Warning function could prevent OTDR module from being damaged by optical signal in fiber.
◇ Realtime measuring function, convenient to monitor the splicing process
◇ Integrated 10mw Visual Fault Locator
◇ Support English/ Chinese input, adopts friendly input interface, totally simulate the computer keyboard input
◇ Integrated with 8GB internal memory, more than 80,000 groups curve storage
◇ PC remote access and control function is available, which support the printing work of the measurement report
Features:
Pulse Width
| (SM 1310/1550NM) 5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs | |
| (MM 850/1300NM) 5ns 10ns 20ns 50ns 100ns 500ns 1us | |
| Distance Range | (SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km,20km,40km, 80km, 120km, |
| (MM 850/1300NM):100m，400m，1.3km，2.5km，5km，10km，20km，40km，80km | |
| Sampling Resolution | Minimum 0.05m |
Sampling Point | 128,000 |
| Linearity | ≤0.05dB/dB |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.001dB |
| Distance Resolution | 0.01m |
| Distance Accuracy | ±（1m+measuring distance×3×10 +sampling resolution） |
| Data Storage: | 20000 groups of curve |
| VFL: | 10mW，CW/2Hz |
| Interface | 3 USB ports（Type A×2，Type B×1） |
| Display | 5.6 inch TFT-LCD, Touching screen |
| Battery | 7.4V/4.4Ah lithium battery , support 8 hours continuous working |
| Working conditions: | Working Temp：-10℃~+50℃；Storage Temp：-20℃~+70℃；Humitity ：≤95%（non-dew） |
| Dimensions/Weight | 253×168×73.5mm / 1.5kg（include battery） |

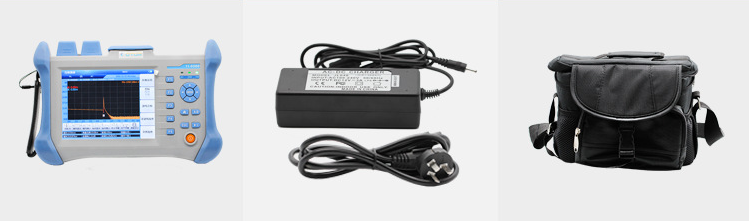

| Packing list | Straps; Adaptor; Lithium battery; FC connector; USD Cable; User Guide; CD; softbag; cleaning cotton |
